2U ACCESSORY



2U RISER CARD


2U1PCIE8+2PCI64LC

2U 1PCI-Express 8X 2 PCI 64bit left angle riser card
* insert at the 4th position of 3.3V PCI-X 64bit slot (cable 40mm long)
* insert at the 5th position of 3.3V PCI-X 64bit slot (cable 20mm long)
* insert at the 6th position of PCI-Express 8X slot (golden finger direct insert to MB)
*
compatible MB such as Intel S5000VSA Dual Core Xeon MB

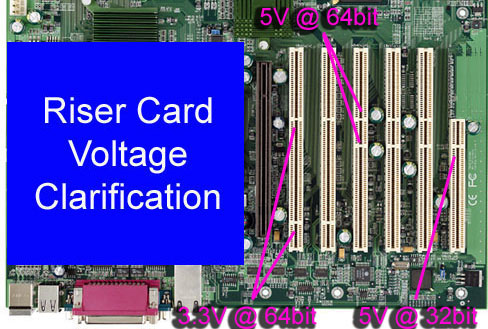

* 5V or 3.3V identification between PCI 32bit and 64bit

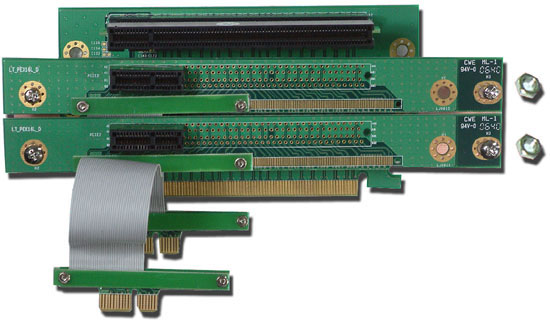

2U1PCIEX16-2PCIEX1

2U 1PCI-Express 16X 2 PCI-Express 1X left angle riser card
* insert at the 3rd position of PCI-Express 1X slot (cable 90mm long)
* insert at the 6th position of PCI-Express 1X slot (cable 25mm long)
* insert at the 7th position of PCI-Express 16X slot (golden finger direct insert to MB)
*
compatible MB such as Intel Dual Core LGA775 DG965WH and DG965RY MB
*
side view

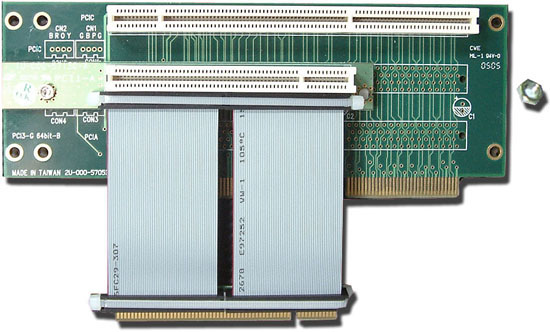

2U1PCI164L-1PCI32LC

2U 1PCI 64bit 1PCI 32bit left angle riser card
* insert at the 5th position of PCI 32bit slot (cable 80mm long)
* insert at the 6th position of PCI 64bit slot (golden finger direct insert to MB)
*
compatible MB such as Tyan S5151 MB
* 5V or 3.3V identification between PCI 32bit and 64bit

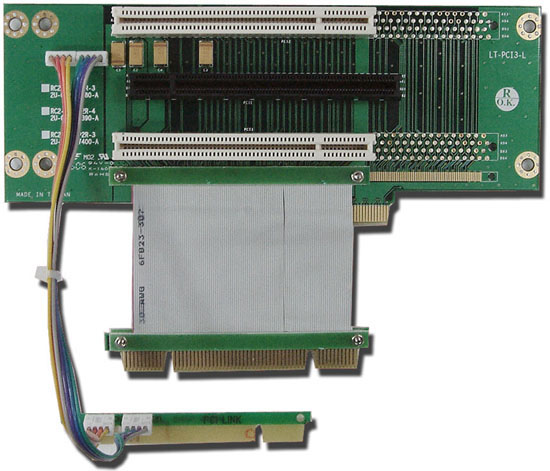

2U1E162PCI32LC

2U 1PCI-Express 16X 2PCI 32bit left angle riser card
*
insert at the 3rd or 4th or 5th position of PCI 32bit slot (cable 80mm long)
*
insert at the 1st or 2nd or 3rd position of PCI 32bit slot (cable 160mm long)
*
insert at the 6th position of PCI-Express 16X slot (golden finger direct insert to MB)
*
compatible MB such as Epox EP-9NPA+SLi MB
* 5V or 3.3V identification between PCI 32bit and 64bit

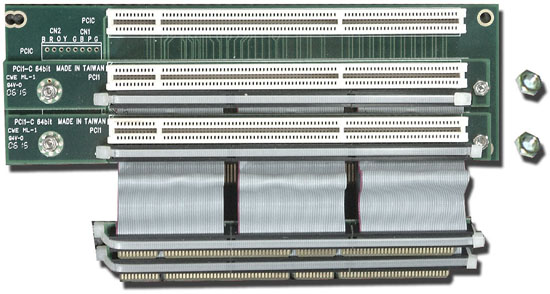

2U3PCI64LC

2U 3PCI 64bit left angle riser card
*
insert at the 4th position of 3.3V PCI-X 64bit slot (cable 45mm long)
*
insert at the 5th position of 3.3V PCI-X 64bit slot (cable 35mm long)
*
insert at the 6th position of 3.3V PCI-X 64bit slot (golden finger direct insert to MB)
*
compatible MB such as Tyan S5360-D MB
* 5V or 3.3V identification between PCI 32bit and 64bit

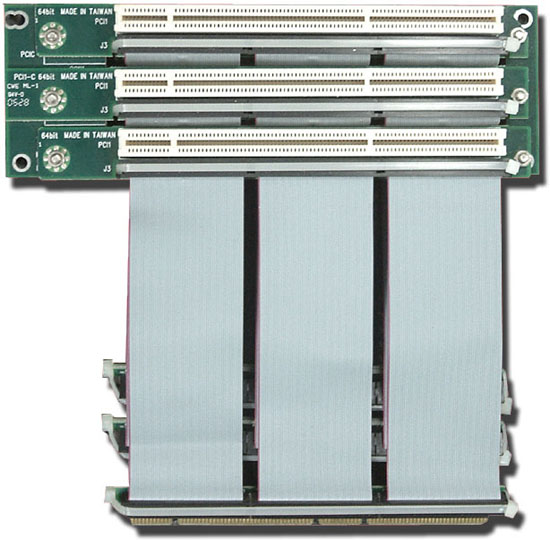

2U3PCI64LC-R3

2U 3PCI 64bit left angle riser card
* insert at the 1st position of 3.3V PCI-X 64bit slot (cable 105mm long)
* insert at the 2nd position of 3.3V PCI-X 64bit slot (cable 80mm long)
* insert at the 3rd position of 3.3V PCI-X 64bit slot (cable 60mm long)
*
compatible MB such as Tyan S5382 MB
* 5V or 3.3V identification between PCI 32bit and 64bit

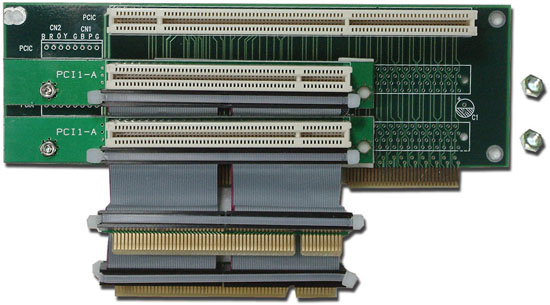

2U1PCI64L-2PCI32LC

2U 1PCI 64bit 2PCI 32bit left angle riser card
* insert at the 4th position of 5V PCI 32bit slot (cable 40mm long)
* insert at the 5th position of 5V PCI 32bit slot (cable 40mm long)
* insert at the 6th position of 3.3V PCI-X 64bit slot (golden finger direct insert to MB)
*
compatible MB such as SuperMicro P8SCT MB
* 5V or 3.3V identification between PCI 32bit and 64bit


2U1E162PCI64LC

2U 1PCI-Express 16X 2PCI 64bit left angle riser card
* insert at the 2nd position of 3.3V PCI-X 64bit slot (cable 80mm long)
* insert at the 3rd position of 3.3V PCI-X 64bit slot (cable 80mm long)
* insert at the 6th position of PCI-Express 16X slot (golden finger direct insert to MB)
*
compatible MB such as Tyan S2892 and SuperMicro X6DAE-G2 MB
* 5V or 3.3V identification between PCI 32bit and 64bit

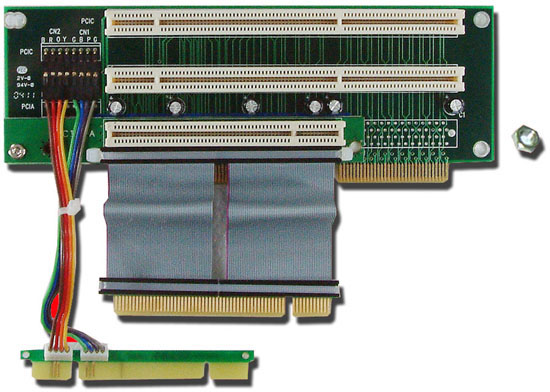

2U2PCI64L-1PCI32LC

2U 2PCI 64bit 1PCI 32bit left angle riser card
* insert at the 3rd or 4th position of 5V PCI 32bit slot (cable mm long)
* insert at the 5th position of 3.3V PCI-X 64bit slot (cable mm long)
* insert at the 6th position of 3.3V PCI-X 64bit slot (golden finger direct insert to MB)
*
compatible MB such as Asus NCLV-D, Tyan S5112 MB
* 5V or 3.3V identification between PCI 32bit and 64bit

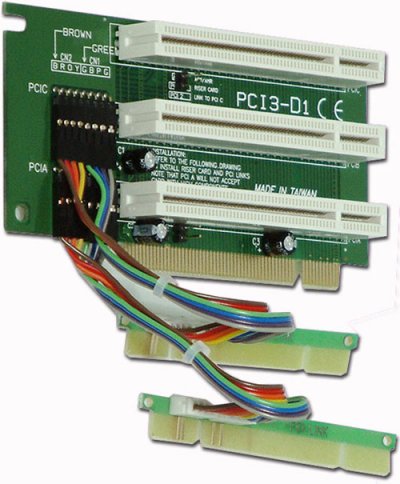

2U3PCI32L

2U 3PCI 32bit left angle riser card
* insert at the 4th or 5th or 6th position of 5V PCI
32bit slot (cable mm long)
* 5V or 3.3V identification between PCI 32bit and 64bit

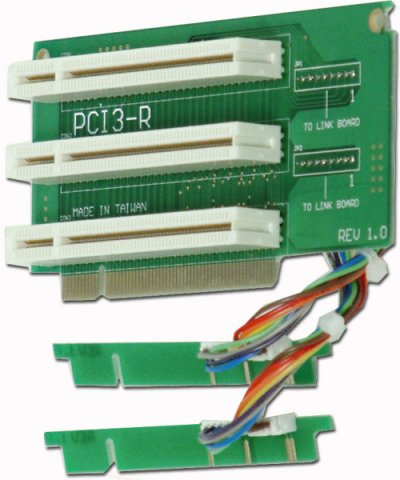

2U3PCI32R

2U 3PCI 32bit right angle riser card
* insert at the 1st or 2nd or 3rd position of 5V PCI
32bit slot (cable mm long)
* 5V or 3.3V identification between PCI 32bit and 64bit

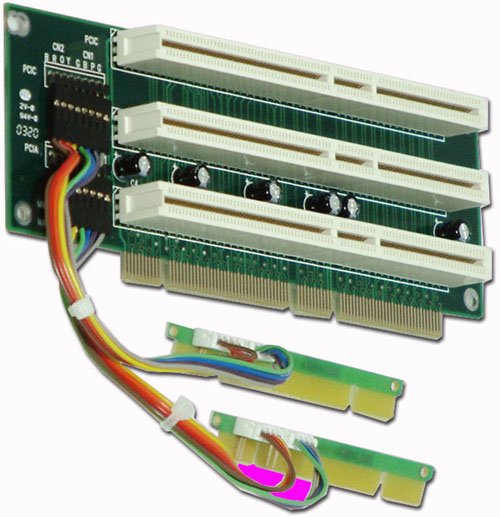

2U3PCI64L

2U 3PCI 64bit left angle riser card
* insert at the 4th or 5th or 6th position of 5V PCI
64bit slot (cable mm long)
* 5V or 3.3V identification between PCI 32bit and 64bit

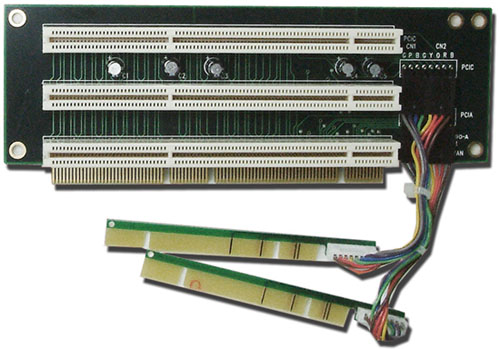

2U3PCI64R

2U 3PCI 64bit right angle riser card
* insert at the 1st position of 3.3V PCI-X 64bit slot (golden finger direct insert to MB)
* insert at the 2nd or 3rd position of 3.3V PCI-X 64bit slot (cable 80mm long)
* insert at the 3rd or 4th position of 3.3V PCI-X 64bit slot (cable 80mm long)
*
compatible MB such as Tyan S5162 MB
* 5V or 3.3V identification between PCI 32bit and 64bit

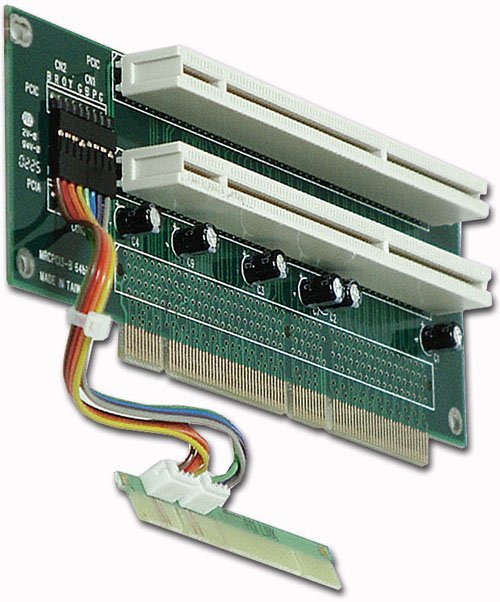

2U2PCI64L33

2U 2PCI 64bit left angle riser card
* insert at the 5th position of 3.3V PCI-X 64bit slot (cable mm long)
* insert at the 6th position of 3.3V PCI-X 64bit slot (golden finger direct insert to MB)
* 5V or 3.3V identification between PCI 32bit and 64bit





2U SIDE BLOW ACTIVE CPU COOLER


J16EA

2U LGA775 side blow aluminum CPU cooler
* whole dimension: 89L×83W×68H
* fastener: screw + spring
* fan dimension: 60x60x25mm, speed: 6800RPM, airflow: 38.36CFM, 2ball bearings
* voltage rating: 12V, noise Level: 46.5dB, connector: 4 pins
* total weight: 371g
* Note: back plate is option


J16EC

2U LGA775 side blow copper CPU cooler
* whole dimension: 89L×83W×68H
* fastener: screw + spring
* heatsink material: copper C1000 series
* fan dimension: 60x60x25mm, speed: 6800RPM, airflow: 38.36CFM, 2ball bearings
* voltage rating: 12V, noise Level: 46.5dB, connector: 4 pins
* total weight: 890g
* Note: back plate is option





2U SLIDE RAIL

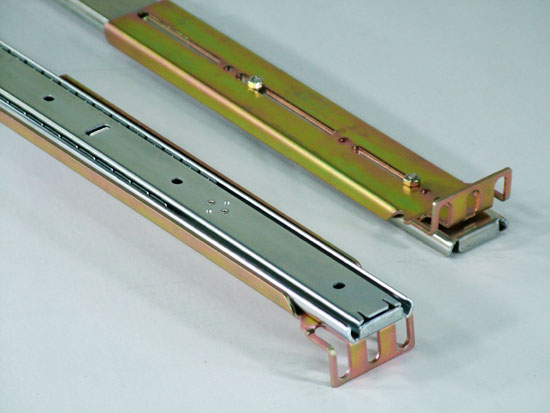

NJ-2020-20

20 inch full extension slide rail
* 2 t
ravels, one pair as one unit
* durable for 35 KGS
* suitable rackmount chassis depth at 500~540mm deep
* package inf
ormation:: 10 pair/box, NW.19.5KGM, GW.21KGM, CUFT.0.53


NJ-2020-24

24 inch full extension slide rail
* 2 t
ravels, one pair as one unit
* durable for 35 KGS
* suitable rackmount chassis depth at 560~660mm deep
* package inf
ormation:: 10 pair/box, NW.20.5KGM, GW.22KGM, CUFT.0.53


NJ-2020-26

26 inch full extension slide rail
* 2 t
ravels, one pair as one unit
* durable for 35 KGS
* suitable rackmount chassis depth at 600~690mm deep
* package inf
ormation:: 10 pair/box, NW.21.5KGM, GW.23KGM, CUFT.0.53

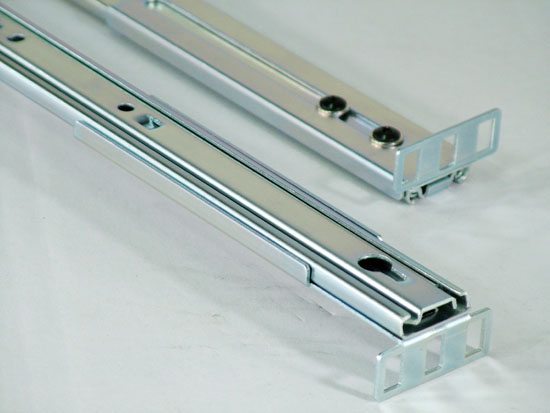

NJ19001-20

20 inch full extension slim slide rail
* 3 t
ravels, one pair as one unit
* durable for 30 KGS
* suitable rackmount chassis depth at 500~540mm deep
* package inf
ormation: 12 pair/box, NW.20KGM, GW.21.6KGM, CUFT.1.5


NJ19001-26

26 inch full extension slim slide rail
* 3 t
ravels, one pair as one unit
* durable for 30 KGS
* suitable rackmount chassis depth at 600~690mm deep
* package inf
ormation: 12 pair/box, NW.21KGM, GW.22.6KGM, CUFT.1.5





POWER SUPPLY


TC-2U46

2U 460W power supply with PFC
*
AC input voltage: 90V~260V (worldwide compatible)
* model size & spec: D.200 x W.100 x H.70 /mm, 6cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin


P2G-6460P

2U 460W power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.240 x W.100 x H.70 /mm, 6cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin


P2G-6510P

2U 510W power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.240 x W.100 x H.70 /mm, 6cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin


P2M-6600P

2U 600W power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.270 x W.100 x H.70 /mm, 6cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin

* remark: 12V enhanced output at 48A


R2G-6300P

2U 300W redundant power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.300 x W.101 x H.82 /mm, two 4cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin


TC-350R2U

2U 350W redundant power supply with PFC
*
AC input voltage: 100V~240V (worldwide compatible)
* model size & spec: D.280 x W.101 x H.84 /mm, two 4cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin


TC-400R2U

2U 400W redundant power supply with PFC
*
AC input voltage: 100V~240V (worldwide compatible)
* model size & spec: D.280 x W.101 x H.84 /mm, two 4cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin


R2Z-6400P

2U 400W redundant power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.265 x W.101 x H.84 /mm, four 4cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin


R2W-6460P

2U 460W redundant power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.300 x W.101 x H.84 /mm, four 4cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin


R2W-6500P

2U 500W redundant power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.300 x W.101 x H.84 /mm, four 4cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin


R2W-5600P

2U 600W redundant power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.300 x W.101 x H.84 /mm, four 4cm ball bearing fan
* universal wiring harness for Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
   SSI 24+8pin
