4U ACCESSORY
|
4U SLIDE RAIL |
|

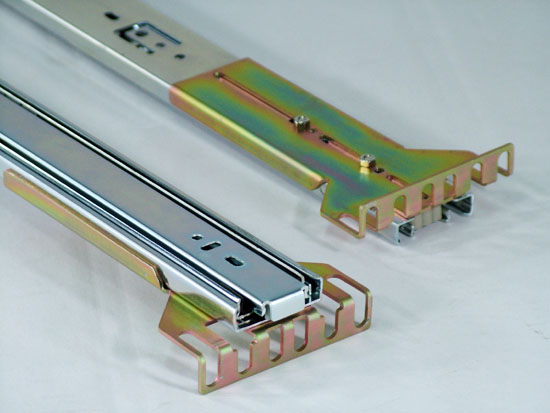

NJ-3032-18
|
18 inch full extension slide rail
* 3 travels, one pair as one unit
* durable for 45 KGS
* suitable rackmount chassis depth at 450~480mm deep
* package information: 10 pair/box, NW.22KGM, GW.23KGM, CUFT.1.14 |
|
NJ-3032-20
|
20 inch full extension slide rail
* 3 travels, one pair as one unit
* durable for 45 KGS
* suitable rackmount chassis depth at 500~540mm deep
* package information: 10 pair/box, NW.23KGM, GW.24KGM, CUFT.1.14 |
|
NJ-3032-24
|
24 inch full extension slide rail
* 3 travels, one pair as one unit
* durable for 45 KGS
* suitable rackmount chassis depth at 560~660mm deep
* package information: 10 pair/box, NW.26KGM, GW.27.5KGM, CUFT.1.14 |
|
NJ-3032-26
|
26 inch full extension slide rail
* 3 travels, one pair as one unit
* durable for 45 KGS
* suitable rackmount chassis depth at 600~690mm deep
* package information: 10 pair/box, NW.28KGM, GW.29KGM, CUFT.1.14 |
|

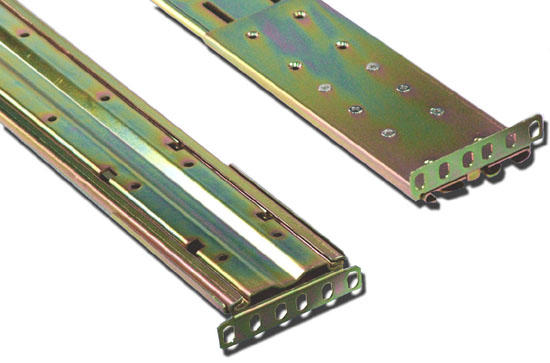

4USLIDE
|
26 inch full
extension slide rail
* 2 travels, one pair as
one unit
* durable for 45 KGS
* suitable rackmount chassis depth at 600~690mm deep
* package information:: 10
pair/box, NW.27KGM, GW.28KGM, CUFT.1.14 |
|
|
|
|
POWER SUPPLY |
|
HP2-6460P
|
PS2 460W power supply with PFC/775/SSI
* AC input voltage: 90V~264V
(worldwide compatible)
* model size & spec: D.140 x W.150 x H.86 /mm, one
two-ball-bearing 80x25mm fan
* universal wiring harness for
Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
SSI 24+8pin |
|
MRT-6300P
|
PS2 300W mini redundant power supply with PFC
* AC input voltage: 90V~264V
(worldwide compatible)
* model size & spec:
D.185 x W.86 x H.150 /mm, four
4cm
ball bearing fan
* universal wiring harness for
Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
SSI 24+8pin |
|
MRW-6350P
|
PS2 350W mini redundant power supply with PFC
* AC input voltage: 90V~264V
(worldwide compatible)
* model size & spec:
D.185 x W.86 x H.150 /mm, four
4cm
ball bearing fan
*
universal wiring harness for
Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
SSI 24+8pin |
|

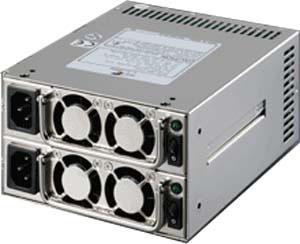

MRW-6400P
|
PS2 400W mini redundant power supply with PFC
* AC input voltage: 90V~264V
(worldwide compatible)
* model size & spec:
D.185 x W.86 x H.150 /mm, four
4cm
ball bearing fan
*
universal wiring harness for
Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
SSI 24+8pin |
|
MRG-6460P
|
PS2 460W mini redundant power supply with PFC
* AC input voltage: 90V~264V
(worldwide compatible)
* model size & spec:
D.200 x W.86 x H.150 /mm, four
4cm
ball bearing fan
*
universal wiring harness for
Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
SSI 24+8pin |
|
MRG-6500P
|
PS2 500W mini redundant power supply with PFC
* AC input voltage: 90V~264V
(worldwide compatible)
* model size & spec:
D.200 x W.86 x H.150 /mm, four
4cm
ball bearing fan
*
universal wiring harness for
Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
SSI 24+8pin |
|
MRM-6550P
|
PS2 550W mini redundant power supply with PFC
* AC input voltage: 90V~264V
(worldwide compatible)
* model size & spec:
D.254 x W.84 x H.150 /mm, four
4cm
ball bearing fan
*
universal wiring harness for
Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
SSI 24+8pin |
|
MRM-6600P
|
PS2 600W mini redundant power supply with PFC
* AC input voltage: 90V~264V
(worldwide compatible)
* model size & spec:
D.254 x W.84 x H.150 /mm, four
4cm
ball bearing fan
*
universal wiring harness for
Intel socket 478 P4 20+4pin, LGA 775 P4 24+4pin and
SSI 24+8pin |
|
|
|
